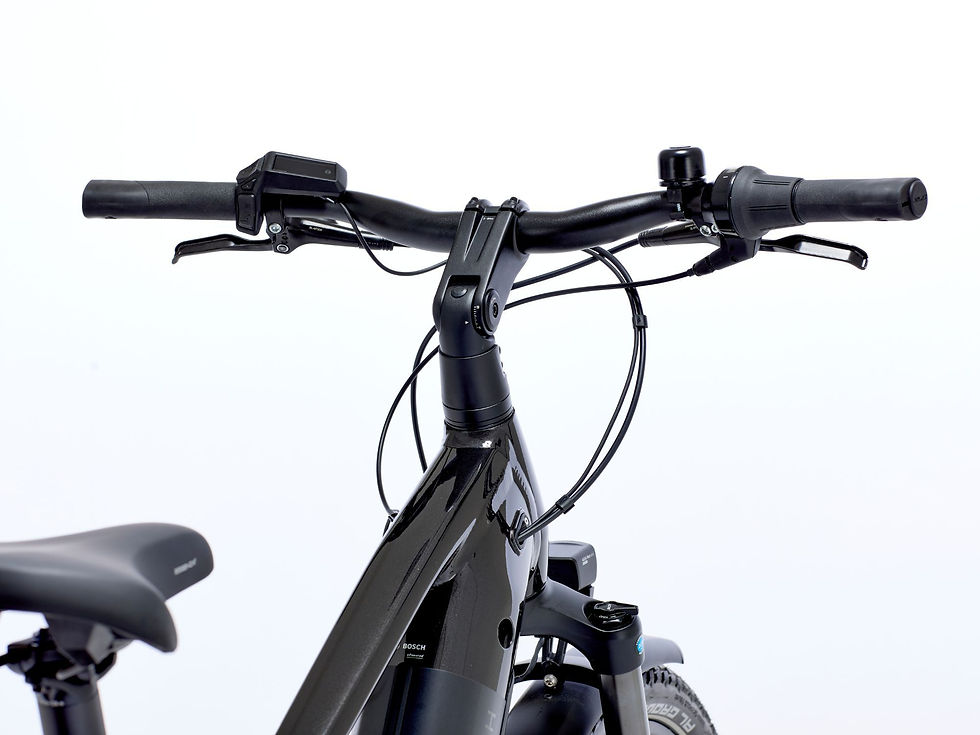

Raleigh Novus (Derailleur)
Description
For those who glide through the city with ease but crave something a little wilder come the weekend, meet Novus. Built for the urban jungle but ready to roam free, this is the ebike that takes you far beyond your morning coffee run.
With a Bosch Performance Line motor and a generous 600wh battery, Novus delivers up to 83 miles of seamless, assisted riding. Off-road tyres and a front suspension fork with 100mm travel shrug off potholes and gravel tracks alike. Mudguards, lights, and a 25kg rear rack handle the practicalities, so you don’t have to.
The details are considered: comfort grips, a Selle Royal Essenza saddle, and your choice of crossbar or step-through frame. Whether you’re loading up for a countryside ramble or just cutting through traffic, it’s a ride that makes light work of heavy miles.
In a world of routine, Novus is your elegant excuse to break it. No noise, no fuss – just pure, quiet capability.

Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
Bosch Ebike Calculator
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)

Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.

Raleigh Novus (Derailleur)

€3,199.00Price
Quantity

  • Brake system

    • Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
    • Brake Front Mount: Post Mount
    • Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
    • Brake Rear Mount: Post Mount
    • Brake Lever Description: Shimano, Altus BL-MT-200
    • Third Brake: No

    Carrier

    • Carrier Rear Description: Easylife, MIK, System Luggage Carrier
    • Max Weight Carrier Rear: 27.5 kg

    Drivetrain

    • Cassette Description: Shimano, Cassette, CUES CS-LG300-9, HG
    • Cassette Teeth: 11-41T
    • Chain Description: Shimano, Chain, CUES CN-LG500 9-11s, LINKGLIDE
    • Crankset Description: Samox, EC37-F9 ISIS Cranks + CR XLC CR-E15 + Bashring
    • Crankset Teeth: 38T
    • Crankset Type: single
    • Derailleur Rear Description: Shimano, Cues, CUES RD-U4000-GS 9s, Shadow+
    • Gear Description: Shimano, Derailleur
    • Automatic Gear: No
    • Number Of Gears: 9
    • Pedal Description: XLC, VPE-527 Alloy w/ Reflector
    • Shifter Right Description: Shimano, Triggershift, CUES SL-U4000-9R, Rapidfire+

    E-bike components

    • Battery Description: Bosch
    • Battery Capacity: 600 Wh
    • Battery Location: Powertube
    • Battery Removeable: Yes
    • Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
    • Display Description: Bosch, Purion, Purion 200
    • Display Removeable: Not Removable
    • Max Support Speed [km/h]: 25 km/h
    • Motor Description: Bosch, Performance Line
    • Motor Torque [nm]: 75 Nm
    • Motor Location: Center
    • Sensor: Pedalforce, speed & rotation
    • Power Handle: No
    • Walk Assist: Yes

    Frame and more

    • Framesize:
      • · 38 cm
      • · 45 cm
      • · 50 cm
      • · 40 cm
      • · 55 cm
    • Framesize Convention:
      • · S
      • · M
      • · L
      • · XL
    • Front Fork Description: Suntour, XCM34 DS Boost, 100 mm
    • Front Fork Type: Suspension
    • Frame Description: LOW, Aluminium, Low-Step
    • Stand Description: XLC, Single, Mooi 18mm, Rear, Max. Lenght: 333 mm
    • Modular Rail System: Yes

    Handlebar and Saddle

    • Ring: Yes
    • Handgrip Description: XLC
    • Handlebar Description: XLC, Flat bar, JD-TR28AL, Dia. 31.8 mm, L: 640 mm
    • Handlebar Material: Aluminium
    • Headset Description: Cane Creek, Semi-integrated, Viscoset ZS44 / ACROS BlockLock ZS56
    • Saddle Description: Selle Royal, Essenza+ A037DRN
    • Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 300 mm
    • Seatpost Material: Aluminium
    • Stem Adjustable: Yes
    • Stem Description: XLC, JD-ST99A-1, Dia. 31.8 mm, L: 80 mm

    Lighting

    • Brake Light: No
    • Front Light Description: AXA, Via E-bike System, NXT 45 E-Bike, 45 Lux, 5-12V
    • Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V

    Other

    • Connectivity App: Yes
    • Suitable For Range Extender: Yes
    • Suitable For Childseat: Yes

    Wheels and wheel components

    • Axle Type Front: Thru-axle Boost
    • Axle Type Rear: Fixed
    • Hub Front Description: Shimano, HB-TC500-15B 15x110 mm, 32H, Centerlock
    • Hub Rear Description: Shimano, FH-TC500-HM-B 12x148 mm, 32H Centerlock, HG
    • Mudguard Front Description: Curana, Apollo 70, extra matte black
    • Mudguard Rear Description: Curana, Apollo 70, extra matte black
    • Rim Description: Schurmann, YAK Disc 25-584 32H 8,5 mm Valve
    • Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
    • Tyre Description: Schwalbe, Al Grounder Perf. RaceGuard, 60-584
    • Tyre Rear Description: Wired Tire
    • Wheelsize Description: 27.5
